Milling Machine Controller 5-axis Syntec 210MA-H-5 F01-210MA-H-5-SEP F01-210MA-H-5-VGA
Product information:
| Parameter | Details |
|---|---|
| Servo Communication | M2/M3/EtherCAT/RTEX |
| Number of Controlled Axes | 8(9) |
| DA Signal | 2 |
| Max Input/Output Signal | 96/96 |
| Screen Size | 10.4″ (-SEP), 1*VGA (-VGA) |
| Expansion Ports | 1LAN, 1RIO, 1RS485, 1SRI |
| Memory | 4GB |
| HPCC | Yes |
| RTCP | – |
High-Performance Multi-Program Product
- Supports Mechatrolink-III communication.
- Also supports Ethercat and RTEX communication.
- Up to 9 axes and 4 groups of axes.
- Simultaneous 5-axis machining.
HPCC (High Precision Curve Control)
- Adjusts discontinuous blocks into a smooth curve.
- Enhances machining capability and reduces mechanical shock.
Increased Servo Latency Compensation (SPA2.0 / ZPEC)
- Enhances arc and angle accuracy.
- Improves path symmetry.
- Increases machine resonance resistance.

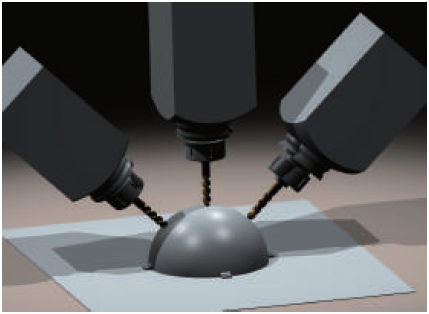

Rotary Tool Center Point Function (RTCP)
- Supports 3D tool length compensation.
- Products are programmed in CAM, and the controller automatically compensates for tool length and wear.
- The tool always remains perpendicular to the product contour.
