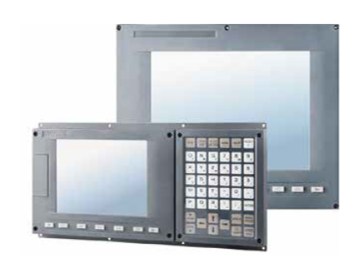

Milling Machine Controller Syntec 21MA-E F01-21MA-E-STD F01-21MA-E-SEP
Product information:
| Specification | Details |
|---|---|
| Servo communication | M3/EtherCAT/RTEX |
| Number of control axes | 6 |
| DA signals | 2 |
| Maximum I/O signals | 96/96 |
| Screen size | 8″ (-STD/-8-SEP), 10.4″ (-SEP) |
| Expansion ports | 1LAN, 1RIO, 1RS485, 1SRI |
| Memory | 512MB |
| HPCC | Yes |
| RTCP | – |
High-Performance Controller with Communication-Based Connection Structure
The Syntec 21MA-E controller comes with Mechatrolink-III servo communication control, improving machining performance by reducing interpolation time and enhancing surface smoothness. The communication-based control also reduces latency compared to traditional pulse-based systems when transmitting between axes, providing a simpler and easier-to-install and set-up system.
High Performance & Improved Configuration
- 21 Series HSHP controller.
- High-resolution motors (24-bit).
- Optical scales (optional).
- High-resolution Syntec spindle motors.
- Supports DD motors (axes 4/5).
- Central cooling (optional).
- High-speed spindle positioning.
- High-speed thread cutting.
- Flexible and reliable HPCC.
Machining on Tilted Work Surfaces
For oblique cutting tools or rotating worktables, it provides a correction function to conveniently define the tilted machining plane.
